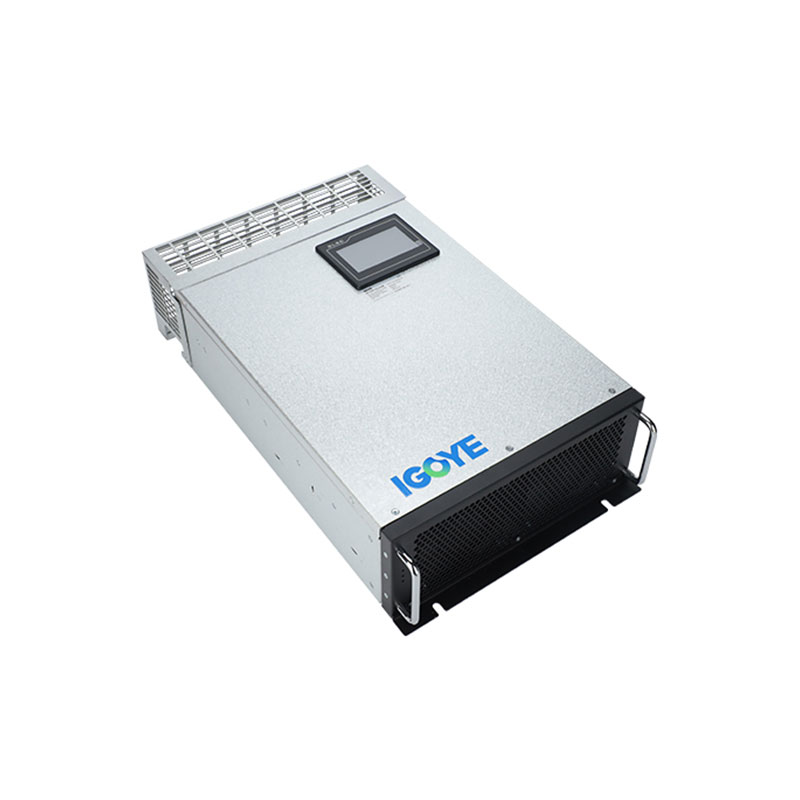

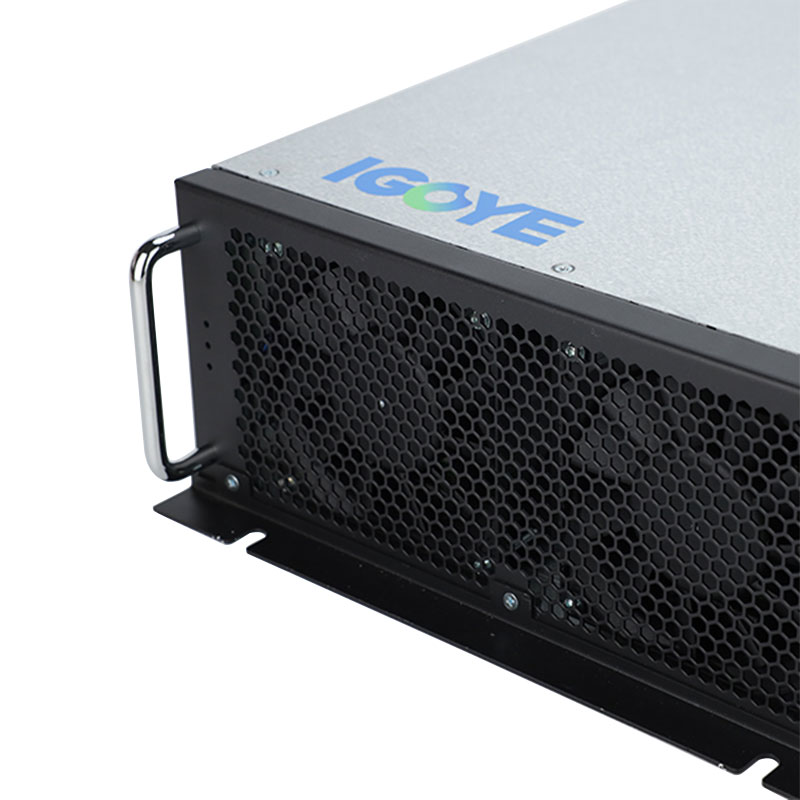

Mẹta-igba mẹrin-okun onibaje oke ti o wa ni afikun àlẹmọ

Gẹgẹbi olupese ti oludari, Geya nfunni ni awọn mẹta-phase mẹta-nla agbesoke ibi-elo ti o wa ni ibamu, ti a ṣe apẹrẹ fun didara agbara ti o gaju ati ṣiṣe agbara ti o gaju. Ile-iṣẹ wa ni China pese ti ifarada, awọn ipinnu iṣẹ giga ti o gbẹkẹle nipasẹ awọn olumulo ni kariaye. Iwari Idi ti awọn ọja wa jẹ olokiki-kan si wa loni fun awọn alaye diẹ sii!

Fi ibeere ranṣẹ

ọja Apejuwe

Awọn mẹta-igba mẹrin-bata rack urp urplic ti nṣiṣe lọwọ ti nṣiṣe lọwọ (Ahf) pese Oke kakiri mating fun awọn ọna agbara mẹrin-okun. Lilo a DSP + CPL oni nọmba CLPL Defelogi elegun to si aṣẹ 50th, lakoko ti o tun sọrọ lori alakoso mẹta Ifarada. Apẹrẹ interlar rẹ ngbanilaaye fun awọn solusan ti iwọn ati irọrun itọju. Wa ni ọpọlọpọ awọn iṣiro lọwọlọwọ (25a si 150a) ati folti Awọn ipele (220v si 690V), AhF nfunni iṣọpọ eto imudara. Fi agbaramu Afẹfẹ aijọpọ ṣe idaniloju isẹ ti o ni igbẹkẹle paapaa labẹ awọn ipo ibeere. Eyi Awọn mẹta-igba mẹrin-ori-iná racket Iwari ohun ini didun ti nṣiṣe lọwọ àlẹmọ ti nṣiṣe lọwọ awọn iṣeduro agbara Didara ati iduroṣinṣin eto.

Apejuwe awoṣe:

Gy	Ahf	0.4	50A	/	4l	R
Koodu ile-iṣẹ	Àlẹmọ faragba ti nṣiṣe lọwọ	Ipele folti 0.22: 220V 0.4: 380v ± 20% 0,5: 500v ± 20% 0.69: 690v ± 20%	Agbara ti o ni oṣuwọn (Kvar) 25/50/75 / 100 / 150a		4L: mẹta-phase mẹrin-waya	R: agbeko ikogun

Awọn ẹya:

Lo DSP + CPLD Gbogbo Core Digital Founta, Imọ-ẹrọ Towelogy mẹta-ipele, Ilọsiwaju aladani ti ilọsiwaju Atgorithm ati ilana iṣakoso PWM lati ṣaṣeyọri isanpada deede ti Ul UNTAL.
● Gba apẹẹrẹ iṣiro, eyiti o mu isopọ asopọ ti o ni afiwe Awọn modulu, gba aaye kekere ati rọrun lati ṣetọju.
● Awọn apẹrẹ igbekale ti awọn iyami afẹfẹ ominira ati awọn iwa-ọfẹ ọfẹ ṣe idaniloju iṣẹ iduroṣinṣin ti ẹrọ.
O le ṣe àlẹmọ awọn apejọ ni ọpọlọpọ awọn ohun-ini, lati 2 si 50 Ipalara, ati yanju iṣoro ti aiṣedeede mẹta lẹsẹsẹ ni akoko kanna.
Iwọn iṣiro fifẹ ti o ga julọ ga. Ti agbara naa ba gba laaye, ara ẹni Oṣuwọn sisẹ lọwọlọwọ le jẹ giga bi 95%. Ṣeto 100% diduro Iyọ lati rii daju iṣẹ iduroṣinṣin igba pipẹ ti ẹrọ.

Awọn ohun elo:

Mẹta-igba mẹrin-inu agbeko igbo agbeleti ti o wa ni afikun awọn asia oníye ti o ni agbara jẹ pataki fun Mimu agbara mimọ ninu awọn ohun elo oriṣiriṣi:

Awọn ile-iṣẹ data: idaabobo awọn ohun elo ifura ati aridaju ti ko ni idiwọ iṣiṣẹ nipasẹ ṣiṣe imukuro pipin deede.
● Awọn ile-iwosan: pese agbara igbẹkẹle fun ohun elo iṣoogun pataki, imudara aabo alaisan ati igbẹkẹle eto.
Awọn agbegbe ile-iṣẹ: imudara imura ati igbesi aye igbesi aye ti Awọn ẹrọ mẹta-mẹta nipa idinku kikọlu.
● Awọn ile ti owo: ṣetọju didara agbara ninu awọn ile pẹlu eka Awọn ọna ọna itanna, dinku downtime silẹ ati ibaje ohun elo.

Mẹta-igba mẹrin-inu onigun mẹrin ti o wa awọn ifibọ awọn afetigbọ ti nṣiṣe lọwọ firanṣẹ logan ibaamu awọn solusting mitingring mitiation fun ibeere mẹta-okun waya Awọn ohun elo.

Three-phase Four-wire Rack Mount Active Harmonic Filter

Awọn ohun elo imọ-ẹrọ:

	220vn jara	380V Series	500ye jara		690v jara
Ibi giga	<2000m, loke 2000m, o dara julọ ni ibamu si GB / t3859.2
Otutu otutu	-20 ~ + 50 ℃
Ọriniinitutu ibatan	≤90%, ko si condensation lori dada nigbati oṣooṣu Iwọn otutu ti o kere ju jẹ 25 ℃
Ipele idoti	Ipele III ni isalẹ
Foliteji ṣiṣẹ	Ac220v ± 20%	Ac380v ± 20%	Ac500v ± 20%		Ac690v ± 20%
Ibi igbohunsafẹfẹ	50hz ± 5%
Isina lọwọlọwọ	2	25/50/75/100 / 150a	100A		100A
Si be	L / n	3p3W / 3P4W	3p3W / 3P4W		3p3W / 3P4W
Nọmba ti awọn sipo ti sopọ ni afiwe	Olimuted
Gbogbogbo ẹrọ ẹrọ	≥97%
Si be	32khz	16khz	12.8khz		12.8khz
Iwoye isanwo	2 ~ 50times, oṣuwọn isanpada kan jẹ adijositable
Aṣayan iṣẹ	Agbara atunse	Agbara imulo, Agbara atunse + Asymmetry
Agbara atunse oṣuwọn isanpada	≥95%	> 92%
Isẹkuro Neught agbara		Agbara laini ṣiṣi silẹ laini jẹ awọn akoko 3 ti alakoso Sisẹ agbara
Akoko idahun ni kikun	<10Ms	<40ms		<40ms	<40ms
Ariwo	≤60DB	≤60DB		≤65DB	≤65DB
Ọna iṣakoso	2-ọna RS485 ni wiwo (ṣe atilẹyin GPRS / WiFi)
Idaabobo	Apọju, software / Hardcurrent, Ikun Overvoltage ati ikuna, ikuna agbara, o ko le yọ, igbohunsafẹfẹ Idaabobo ajeji, bbl	Apọju, software / Hardcurrent, Ikun Overvoltage ati aiṣedeede, aiṣedeede folda, ikuna agbara, Iyọ, ibigbogbo igbohunsafẹfẹ, Circuit kukuru Idaabobo, bbl

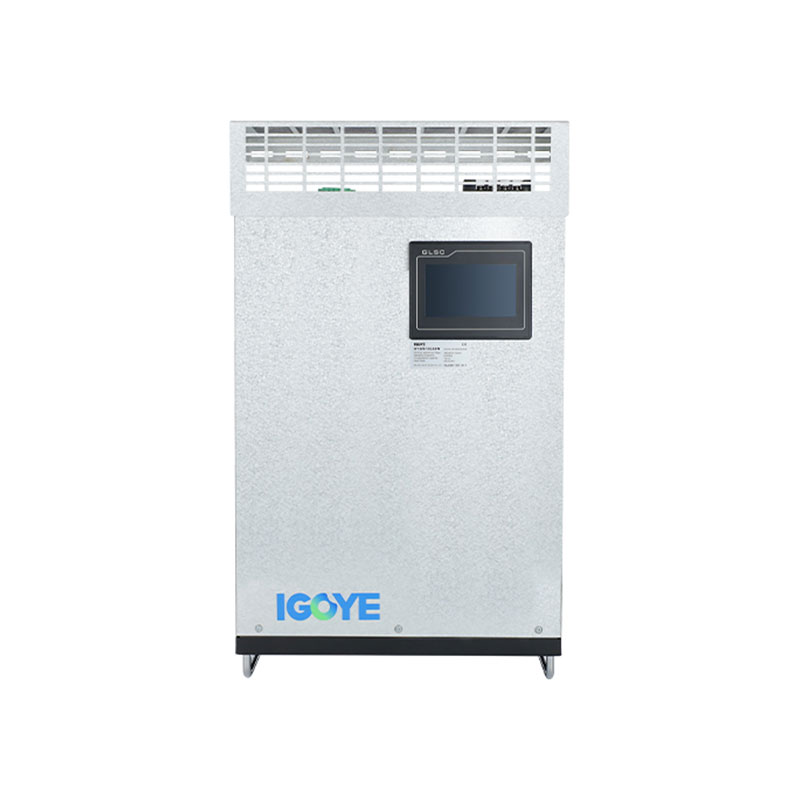

Ọna fifi sori ẹrọ	Agbeko / ogiri-ogiri		Agbeko
Laini ti nwọle	Pada ti nwọle (iru agbeko), ti nwọle ti o wa (oke-oke)		Laini ti nwọle
Ipele Idaabobo	Ip20

Awoṣe & Alayeyeyeye:

Three-phase Four-wire Rack Mount Active Harmonic Filter

Awoṣe
Nọmba Awoṣe	Ti o wa lọwọlọwọ (a)	Folti foonu (v)	Awọn iwọn (D * W * h)	Ọna itutu agbaiye
Gy apf-0.22-25a / 2L-R / W	25	220	220 * 330 * 160mm	Fi agbara mu itutu afẹfẹ
Gy APF-0.4-25a / 4L-R / W	25	380 ± 20%	460 * 490 * 89mm
Gy APF-0.4-50A / 4L-R / W	50	380 ± 20%	460 * 490 * 89mm
Gy APF-0.4-75a / 4L-R / W	75	380 ± 20%	500 * 510 * 190mm
Gy APF-0.4-100a / 4L-R / W	100	380 ± 20%	500 * 550 * 240mm
Gy APF-04-150a / 4L-R / W	150	380 ± 20%	500 * 550 * 240mm
Gy APF-0,5a / 4L-R / W	100	500 ± 20%	495 * 675 * 275mm
Gy APF-0.69-100a / 4L-R / W	100	690 ± 20%	495 * 675 * 275mm
