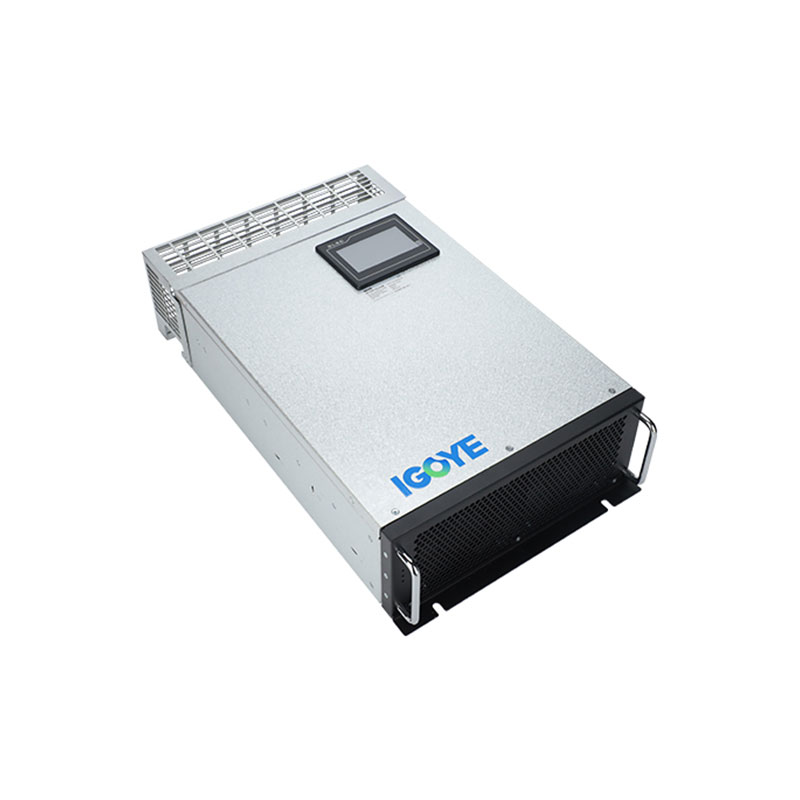

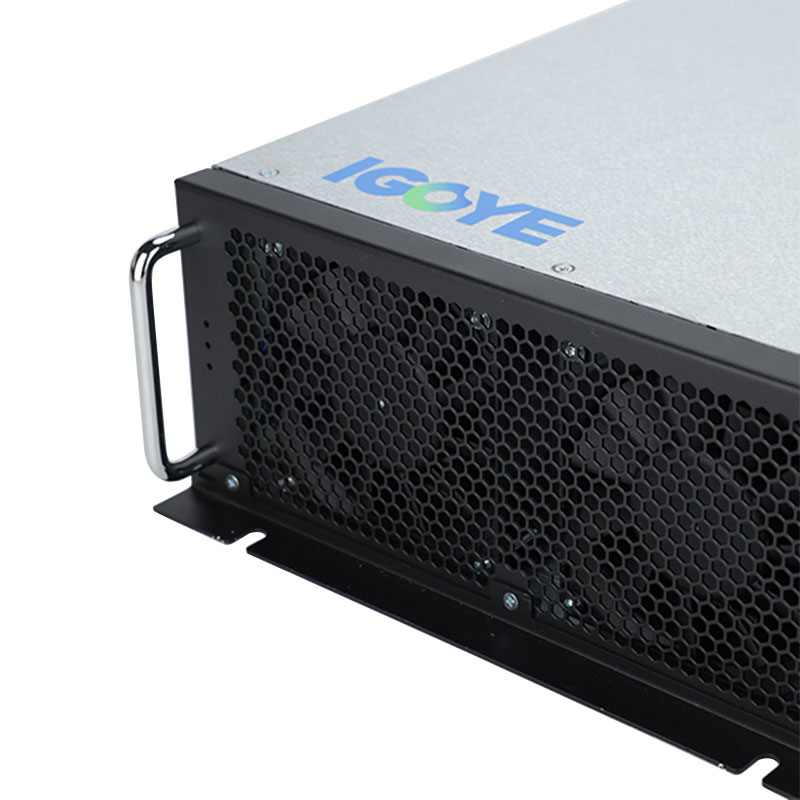

690v agbeko agbegunju ti nṣiṣe lọwọ
Nwa fun awọn a 690v rack àjẹri àlẹmọ? Geyo n funni ni awọn solusan didara-oke pẹlu iṣẹ giga ati igbẹkẹle. Gba agbasọ ọrọ kan ti o ṣe afiwe si awọn aini rẹ ati mu ṣiṣe ṣiṣe eto rẹ pọ si. Kan si wa bayi fun idiyele ti o dara julọ ati atilẹyin tita to dara julọ lẹhin-tita. Iṣeeṣe lati ṣe igbelaruge iṣelọpọ rẹ loni!
Awọn agbejade 690v Awọn agbesoke Olutọju to dara fun Itẹagun ti ngbiyanju (AHF) n pese iwe-mimọ ti o dara julọ fun folti giga (690v ± 6%) awọn eto agbara mẹta-alakoso. Ẹgbẹ awọn agake-agalẹ yii nlo msp + CPL oni nọmba CSP + CLPL A DSP + CLPL CEMPL Core ati Tepo-ipele mẹta fun konnu ti ara ẹni to ni idaabobo 50. Pẹlu agbara lọwọlọwọ ti a ti gbekalẹ lọwọlọwọ, o ṣe afihan awọn adirẹsi odi pipọ pipọ ati awọn mẹta-ikawe alakoso. Apẹrẹ iṣupọ ṣe atilẹyin asopọ ibaramu fun agbara ti o pọ si ati itọju irọrun. Fi agbara mu aidi aidimu ṣe idaniloju iṣẹ ti o gbẹkẹle. Awọn agbeko 690v Awọn agbesoke Olutọju Olutọju Gbigba Ajọ Awọn Agbara Alafẹfẹgidijagan fun ibeere awọn agbegbe ile-iṣẹ.
Apejuwe awoṣe:
| Gy | Ahf | 0.69 | 100A | / | 4l | R |
| Koodu ile-iṣẹ | Àlẹmọ faragba ti nṣiṣe lọwọ | Ipele folti 0.69: 690v ± 20% |
Agbara ti a ṣe iwọn (Kvar) 100a | 3L: mẹta-phase mẹta-okun waya 4L: mẹta-phase mẹrin-waya |
R: agbeko ikogun |
Awọn ẹya:
Lo DSP + CPLD Gbogbo MEME oni nọmba, imọ-ẹrọ giga-temitalog-ipele algorithm ati ilana iṣakoso pwm ti ilọsiwaju ti PGM ati ilana iṣakoso PWM lati ṣe aṣeyọri idiwọn lọwọlọwọ.
● Gba apẹrẹ iwura, eyiti o mu isopọmọra asopọ ti o jọra ti awọn modulu pupọ, gba aaye kekere ati rọrun lati ṣetọju.
● Awọn apẹrẹ igbekale ti awọn eemọ afẹfẹ ti ominira ati awọn iwari ominira ṣe idaniloju iṣẹ iduroṣinṣin ti ẹrọ.
O le ṣalaye awọn ibamu ni ọpọlọpọ awọn ohun-ini, lati awọn eewu 2 si 50, ati yanju iṣoro ti aiṣedeede mẹta-alakoso ni akoko kanna.
Iwọn iṣiro fifẹ ti o ga julọ ga. Ti agbara ko ba gba laaye, oṣuwọn lilọsi lọwọlọwọ ti o nira julọ le jẹ giga bi 95%. Ti ṣeto 100% isunmọ ipo lọwọlọwọ lati rii daju iṣẹ idurosin igba pipẹ ti ẹrọ.
Awọn ohun elo:
690V agbeakọ Awọn Asojọ oníye to lagbara n ṣakoso jẹ pataki fun mimu didara agbara ati iṣẹ ni awọn ọna agbara folittigbọ:
● Awọn ohun elo Iṣẹ Iṣẹ:Mitigras alemona ti a ṣe akosile nipasẹ awọn awakọ igbohunsafẹfẹ alafẹfẹ nla (VFDs), awọn igi tuntun, ati awọn ẹru ti kii ṣe laini ninu awọn eto foligbọju.
● Iwakusa ati epo & gaasi:Aridaju iṣẹ igbẹkẹle ti awọn ohun elo pataki ni awọn agbegbe lile pẹlu pinpin agbara folti giga.
● Ijọpọ agbara Agbara:Stimizing agbara lati awọn orisun agbara agbara fosiobara ti o ni asopọ si akoj.
● Awọn ile-iṣẹ data ati awọn amayederun pataki:Idabobo ẹrọ ifura ati mimu didara agbara ni awọn agbegbe ile-iṣẹ int-inu Foltigbo.
690V agbegun Asọdi ti nse gbigba gbigba agbara iparun ti o munadoko Imiation ti imudara ni awọn ohun elo folitsin to gaju.
Awọn ohun elo imọ-ẹrọ:
| 220vn jara | 380V Series | 500ye jara | 690v jara | ||
| Ibi giga | <2000m, loke 2000m, o dara julọ ni ibamu si GB / t3859.2 | ||||
| Otutu otutu | -20 ~ + 50 ℃ | ||||
| Ọriniinitutu ibatan | ≤90%, ko si consiensation lori dada nigbati iwọn otutu ti o kere ju ti o kere ju jẹ 25 ℃ | ||||
| Ipele idoti | Ipele III ni isalẹ | ||||
| Foliteji ṣiṣẹ | Ac220v ± 20% | Ac380v ± 20% | Ac500v ± 20% | Ac690v ± 20% | |
| Ibi igbohunsafẹfẹ | 50hz ± 5% | ||||
| Isina lọwọlọwọ | 2 | 25/50/75/100 / 150a | 100A | 100A | |
| Si be | L / n | 3p3W / 3P4W | 3p3W / 3P4W | 3p3W / 3P4W | |
| Nọmba ti awọn sipo ti sopọ ni afiwe |
Olimuted | ||||
| Gbogbogbo ẹrọ ẹrọ | ≥97% | ||||
| Si be | 32khz | 16khz | 12.8khz | 12.8khz | |
| Iwoye isanwo | 2 ~ 50times, oṣuwọn isanpada kan jẹ adijositable | ||||
| Aṣayan iṣẹ | Agbara atunse | Agbara imulo, Agbara atunse + Asymmetry | |||
| Agbara atunse oṣuwọn isanpada |
≥95% | > 92% | |||
| Isẹkuro Neught agbara |
Agbara laini ṣiṣi silẹ laini jẹ awọn akoko 3 ti agbara fifẹ alakoso | ||||
| Akoko idahun ni kikun | <10Ms | <40ms | <40ms | <40ms | |
| Ariwo | ≤60DB | ≤60DB | ≤65DB | ≤65DB | |
| Ọna iṣakoso | 2-ọna RS485 ni wiwo (ṣe atilẹyin GPRS / WiFi) | ||||
| Idaabobo | Apọju, software / Hardcurrent, overcltage ati aisedede, ikuna agbara, kovery, ibi aabo igbohunsafẹfẹ, bbl | Apọju, software / Hardcurrent, Ifaagun ti o tẹẹrẹ, Ikuna Ipari, Idaabobo Ikuna, BACL | |||
| Ọna fifi sori ẹrọ | Agbeko / ogiri-ogiri | Agbeko | |||
| Laini ti nwọle | Pada ti nwọle (iru agbeko), ti nwọle ti o wa (oke-oke) | Laini ti nwọle | |||
| Ipele Idaabobo | Ip20 | ||||
Awoṣe & Alayeyeyeye:
| Nọmba Awoṣe | Ti o wa lọwọlọwọ (a) | Folti foonu (v) | Awọn iwọn (D * W * h) | Ọna itutu agbaiye |
| Gy apf-0.22-25a / 2L-R / W | 25 | 220 | 220 * 330 * 160mm | Fi agbara mu itutu afẹfẹ |
| Gy APF-0.4-25a / 4L-R / W | 25 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy APF-0.4-50A / 4L-R / W | 50 | 380 ± 20% | 460 * 490 * 89mm | |
| Gy APF-0.4-75a / 4L-R / W | 75 | 380 ± 20% | 500 * 510 * 190mm | |
| Gy APF-0.4-100a / 4L-R / W | 100 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy APF-04-150a / 4L-R / W | 150 | 380 ± 20% | 500 * 550 * 240mm | |
| Gy APF-0,5a / 4L-R / W | 100 | 500 ± 20% | 495 * 675 * 275mm | |
| Gy APF-0.69-100a / 4L-R / W | 100 | 690 ± 20% | 495 * 675 * 275mm |
